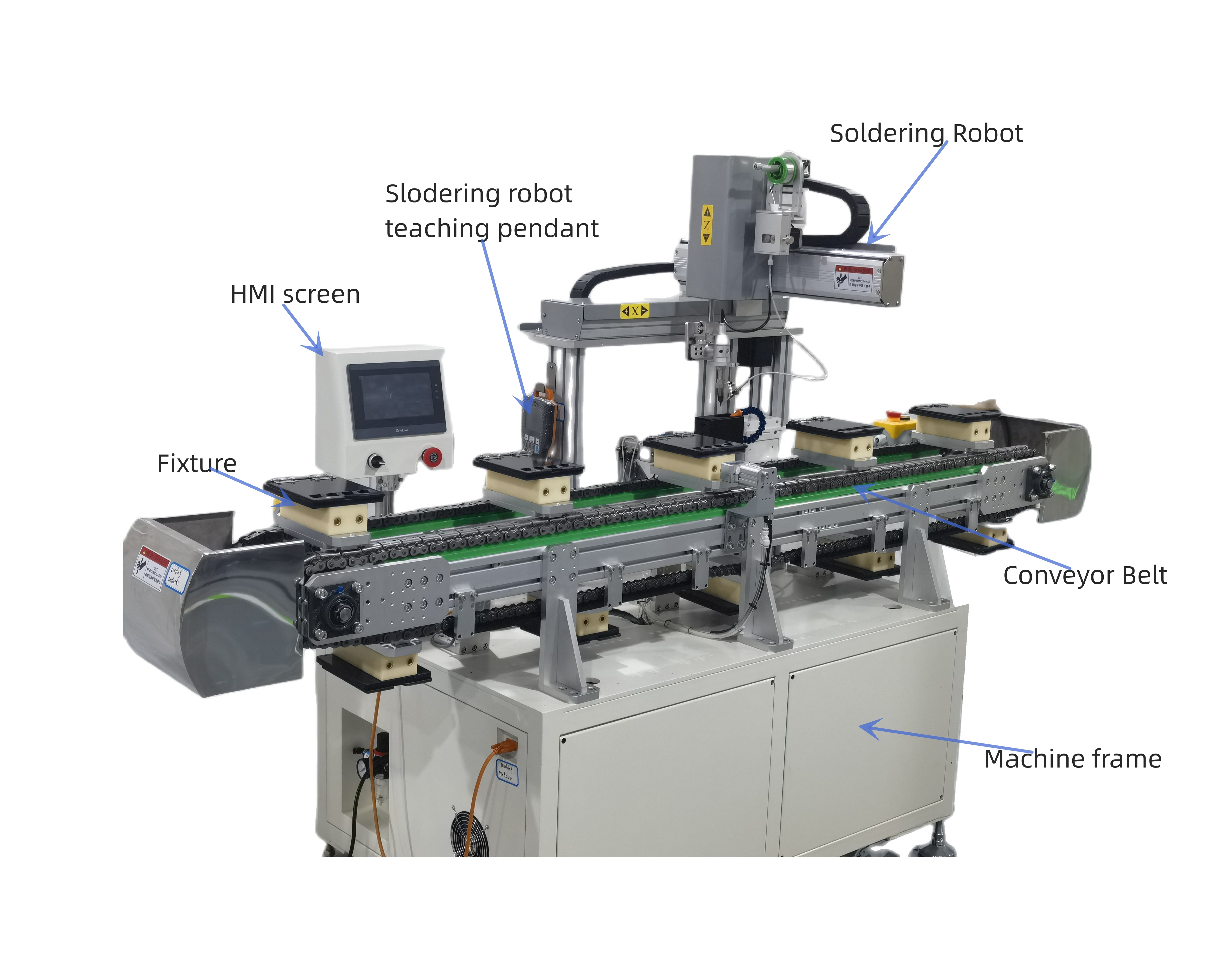

La máquina de soldadura en línea BBA totalmente personalizada está totalmente personalizada en función de los requisitos del cliente con la cinta de transmisión automática para transmitir múltiples productos continuamente para ahorrar el tiempo de selección y el lugar, aumente la eficiencia. Aplicable para la placa de circuito electrónico, sustrato de aluminio LED, componentes electrónicos enchufables, proceso de soldadura de cables, etc.
| Cantidad: | |
|---|---|
BBA-8331HX
BBA
| Model | BBA-331HX (Single Y platform) | BBA-5331HX (Dual Y platforms) | BBA-6331HX (Dual soldering systems) | BBA CUSTOMIZED | |||
| Voltage | AC 110/220V 50/60HZ | ||||||
| Power | 350W | 350W | 700W | To order | |||
| Movable range | X | 300mm | X | 500mm | X1/X2 | 500mm | To order |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm | ||
| Z | 100mm | Z | 100mm | Z | 100mm | ||
| R | 360° | R | 360° | R | 360° | ||
| Max moving speed | X | 600mm/s | X | 600mm/s | X1/X2 | 600mm/s | To order |
| Y | 600mm/s | Y1/Y2 | 600mm/s | Y1/Y2 | 600mm/s | ||
| Z | 400mm/s | Z | 400mm/s | Z | 400mm/s | ||
| R | 300°/s | R | 300°/s | R | 300°/s | ||
| Repeat Positioning Accuracy | ±0.02mm (X * Y * Z), ±0.05° (R) | To order | |||||
| Maximum Load Weight | 8KG (For Work Platform) | To order | |||||
| Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | To order | |||||
| Preheating Temperature Range | 0℃~ 550℃ | To order | |||||
| Solder Wire Diameter | 0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm) | To order | |||||
| Tin feeding control | Precision stepper motor | To order | |||||
| External Dimensions(L*W*H) | 70*60*85(CM） | 85*60*85(CM） | 100*60*85(CM） | To order | |||
| Weight | 65KG | 90KG | 120KG | To order | |||
| Model | BBA-331HX (Single Y platform) | BBA-5331HX (Dual Y platforms) | BBA-6331HX (Dual soldering systems) | BBA CUSTOMIZED | |||
| Voltage | AC 110/220V 50/60HZ | ||||||
| Power | 350W | 350W | 700W | To order | |||
| Movable range | X | 300mm | X | 500mm | X1/X2 | 500mm | To order |
| Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm | ||
| Z | 100mm | Z | 100mm | Z | 100mm | ||
| R | 360° | R | 360° | R | 360° | ||
| Max moving speed | X | 600mm/s | X | 600mm/s | X1/X2 | 600mm/s | To order |
| Y | 600mm/s | Y1/Y2 | 600mm/s | Y1/Y2 | 600mm/s | ||
| Z | 400mm/s | Z | 400mm/s | Z | 400mm/s | ||
| R | 300°/s | R | 300°/s | R | 300°/s | ||
| Repeat Positioning Accuracy | ±0.02mm (X * Y * Z), ±0.05° (R) | To order | |||||
| Maximum Load Weight | 8KG (For Work Platform) | To order | |||||
| Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | To order | |||||
| Preheating Temperature Range | 0℃~ 550℃ | To order | |||||
| Solder Wire Diameter | 0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm) | To order | |||||
| Tin feeding control | Precision stepper motor | To order | |||||
| External Dimensions(L*W*H) | 70*60*85(CM） | 85*60*85(CM） | 100*60*85(CM） | To order | |||
| Weight | 65KG | 90KG | 120KG | To order | |||
