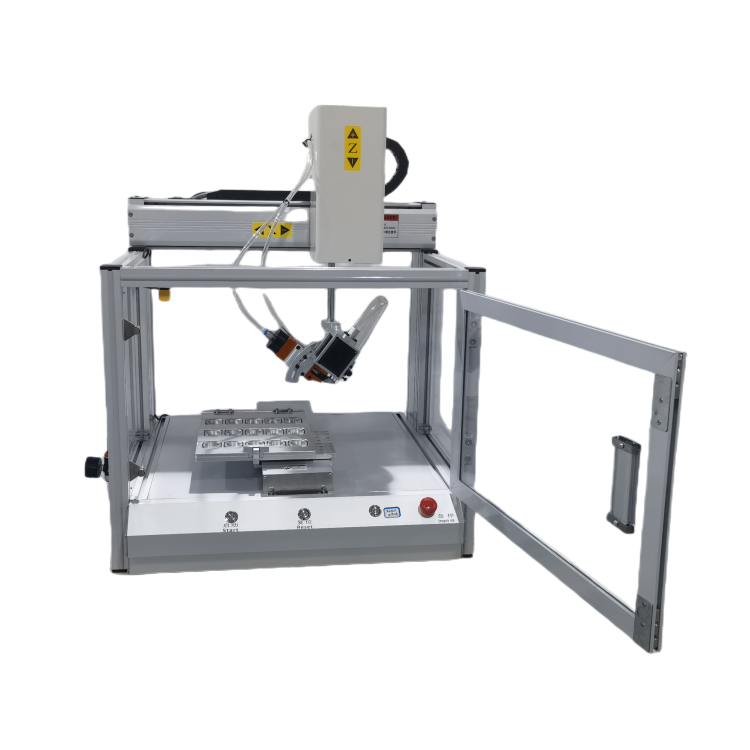

BBA PCB Cortero de la máquina de corte de pierna de plomo Pin Cortador automático con cubierta de seguridad

BBA PCB Lead Leg Cutting Machine Capacitor Pin Automatic Cutter with Safety Cover is mainly to cut the extra pin after THT components soldering. Machine with safety cover to ensure worker's safety. Fast blade cutter to realize high efficiency. Univesal product fixture to meet different PCB board size.

Estado de Disponibilidad:
Cantidad:
Preguntar

  • BBA-331CU

  • BBA

BBA PCB Lead Leg Cutting Machine Capacitor Pin Automatic Cutter with Safety Cover

ModelBBA-331CU
VoltageAC110/220V 50/60HZ
Working platform

300**300*100 mm (can be customized)

R axis: 360°

Maximum load weight8KG (For work platform)
Repeated Precision+/-0.03MM
Operation systemTeaching pendant
Program Capacity1000 files, 8000points per set
Data Storage TypeUSB Disk
Movement patternPoint to point in XYZ axis, Continuous line, arc
Cutting efficiency6000-7500 points per hour
Cutting capacityCopper wire ≤ Φ3.0mm(change different cutters according to wire diameters)
Driving ModePrecision Stepping Motor + Synchronous belt
Weight90(KG)


BBA PCB Lead Leg Cutting Machine Capacitor Pin Automatic Cutter with Safety Cover

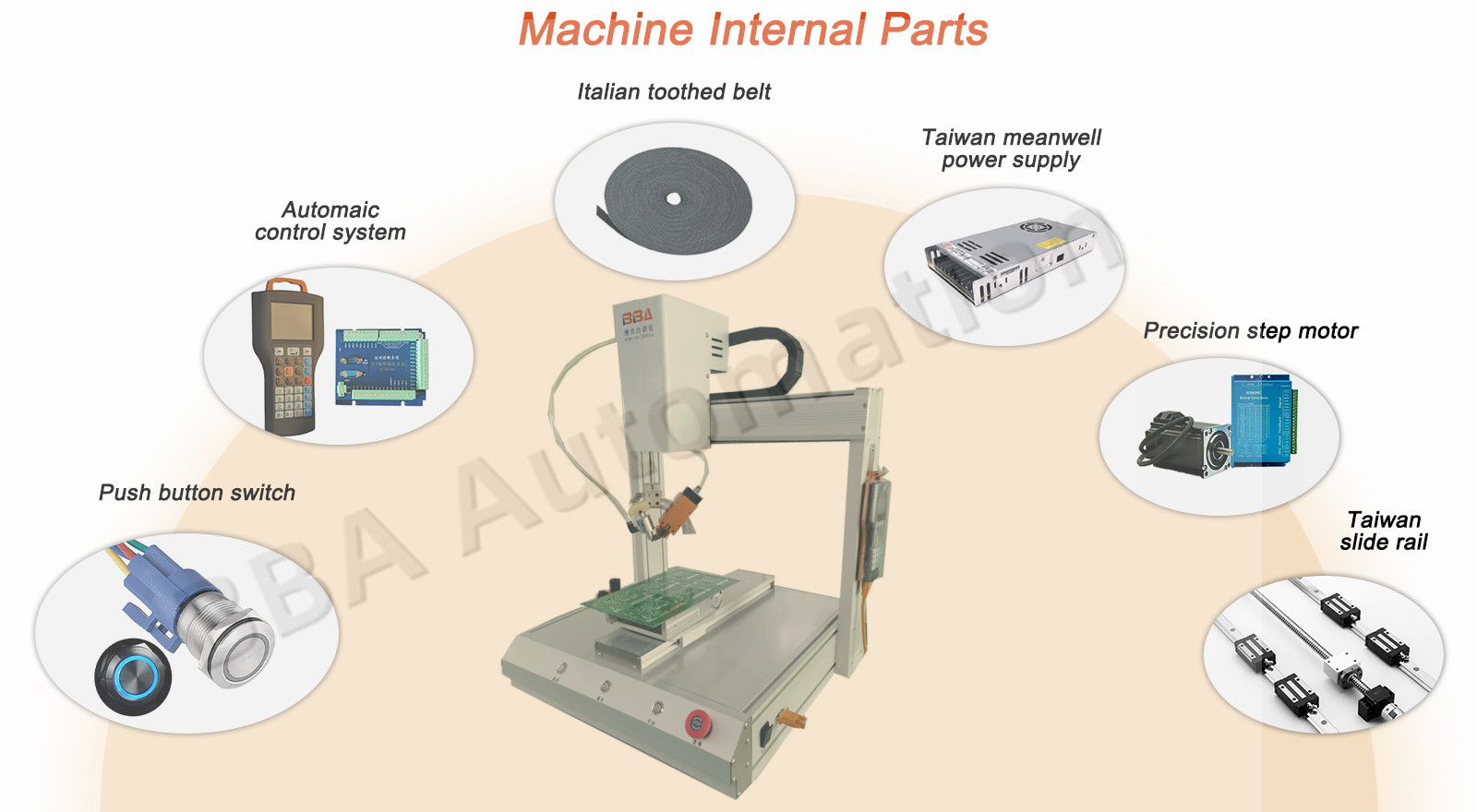

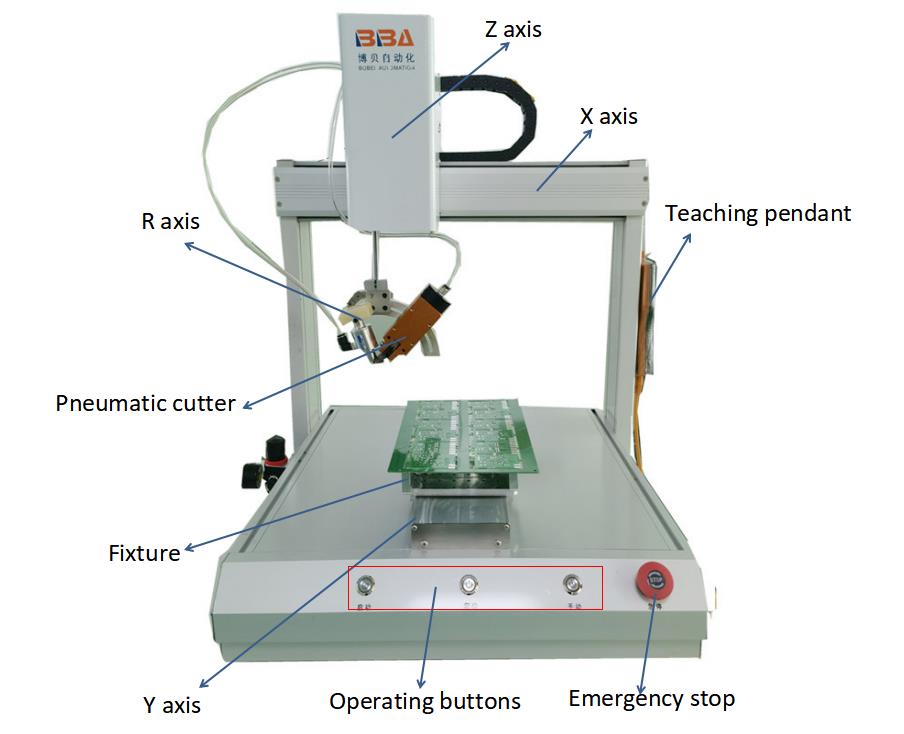

爆炸图2 拷贝_副本

微信图片_20221013150553微信图片_20221013150558


Features of BBA PCB Lead Leg Cutting Machine Capacitor Pin Automatic Cutter with Safety Cover

1. Easy operation with human-machine interface control panel.

2. Universal product fixture to meet different PCB size.

3. Large programme capacity, can store more than 1,000 processing files, and each file supports 8,000 instructions.

4. High cutting efficiency: 6000-7500points /hour.

5. The cutting speed & single point amount of PCBA leads can be set separately, leads cutting accuracy ±0.2mm.

6. Equipped with High-precision stepper motor control.

7. Automatic soldering foot cutting machine can be used to cut any shape of point, line, arc, etc.

8. The clipping head can be adjusted at any angle in any direction, with wide applicability to meet different needs.

9. Machines of different specifications can be customized based on customer's requirements.

10. Vaccum system to suck the waste.

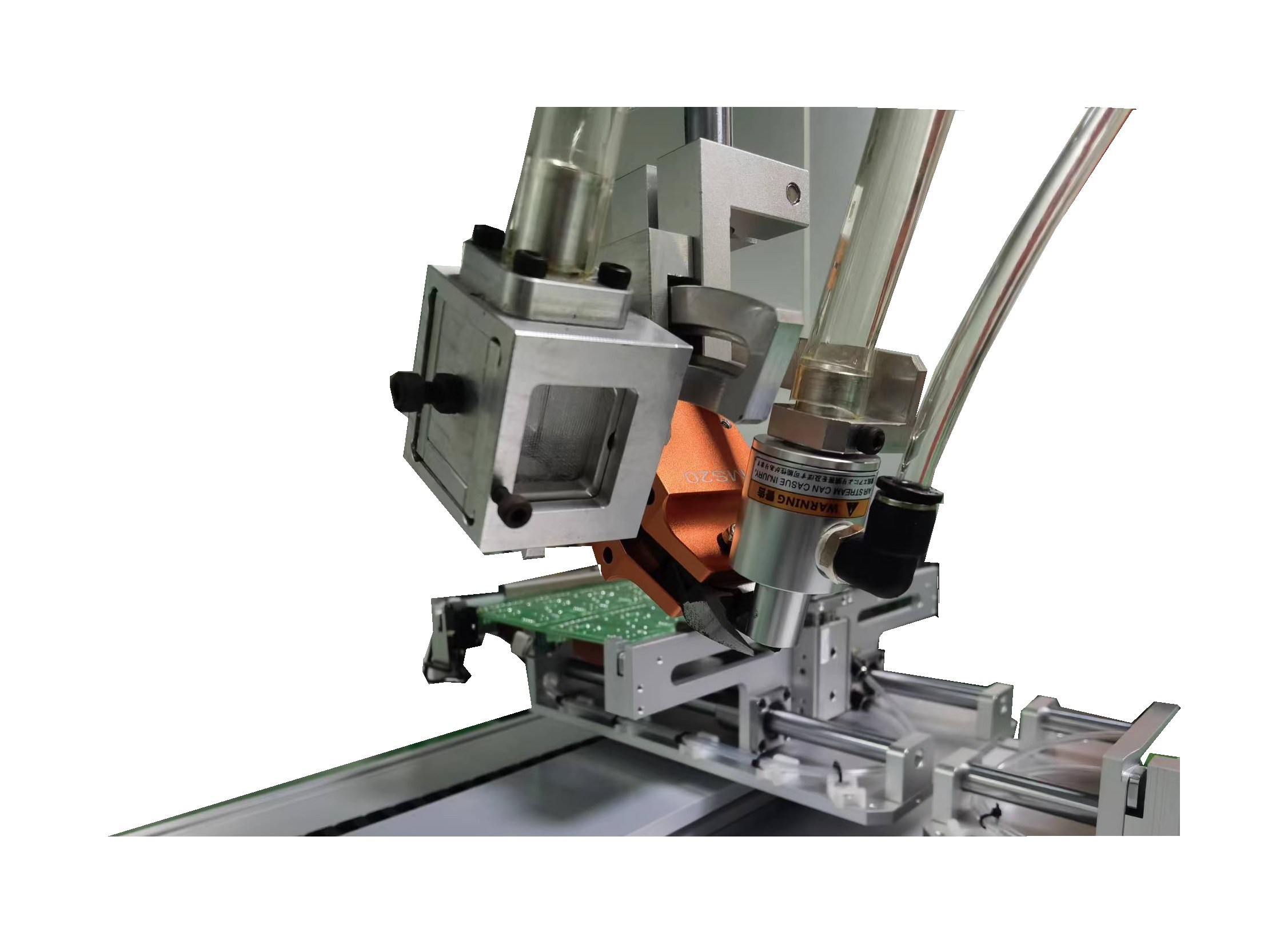

9_副本

Application for BBA Factory Direct Sale Automatic PCB Leg Clipping Machine for Assemble Line

This PCB lead cutting machine for plug-in products is available for a vast range of products, mainly suitable for selective clipping of circuit boards in the PCB industry: Digital electronics, Led light panel, PCB industry, Communications, Home appliance, Automobile industry, etc.

connector cutting machine




BBA automationCutting machineautomatic pcb cutter证书 详情pin foot clipper
